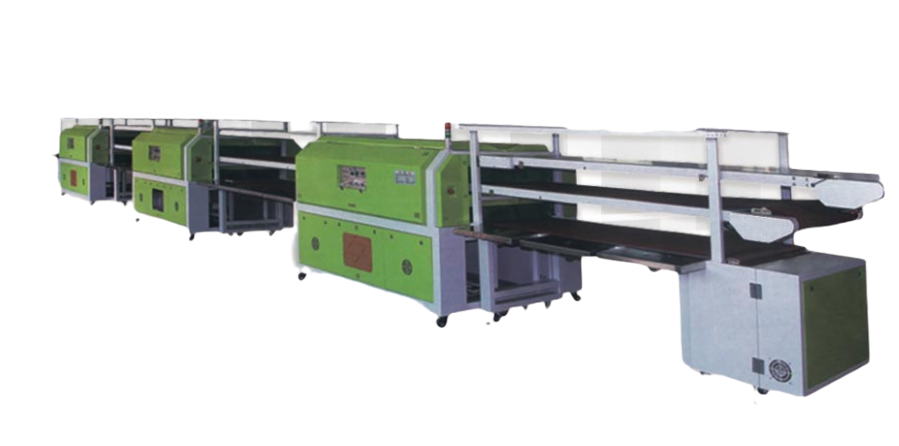

FQ-310DInfrared lego system molding machine double layers assembly line for shoe production

CHARACTERSTIC:
Infrared Lamp
*Adopt imported NIR infrared lamp with fast heating and stable temperature.
The accurate constant temperature system
★Adopt SCR independent temperature control system.The temperature is certainly precise to make prefect sticking result.
*The temperature system can be heated quickly. It is about 40-60 seconds to reach temperature set point and reduces electricity usage.
The oven temperature
★Can be set according to different materials to make production more convenient and meet the requirements of shoe making&design.

Advantages:

*The oven of assembly line cooperates with work flow,which can be freely moved and adjustable.

★Simple design,easy installation,convenient operation.

*Double layer design adopts isolation method and cooperates with sticking work,gluing,group,such work flow design to increase efficiency,save labor and boost yield.

Saving space

The shoe sole and vamp directly go through the penetrated light of intrared lamp.which largely reduce the length of the oven.

The conveyor system:

★The speed can be adjusted to 0-1.3m/min.The shoe sole and vamp can be transported at the same time.

What's more,it adopts adjustable shoe last frame,suitable for different types of shoes.

★The specifications of production line can be customized according to factory planning.Besides,the installation of fast speed conveyor makes the sticking stronger.
